Flight data
Record attitude, position, velocity, acceleration, rotation rates, load factor, heading, and altitude at 50 samples per second.
ONFLIGHT HUB
Your flight,
measured.
A portable flight data logger that combines GPS and inertial sensors to capture your aircraft's motion at 50 Hz.
Record flights for training, proficiency review, backcountry flying, and aerobatic analysis.
$599
Loading purchase options…
ACCESSORY
Tripod mount adapter
CNC-machined aluminum adapter connects OnFlight Hub to a standard 1/4-20 tripod mount.
$49
Loading purchase options…
More than a GPS track.
OnFlight Hub combines GNSS, inertial, magnetic, and pressure measurements to estimate aircraft motion and record sensor data throughout the flight.
Portable
A self-contained system with 8+ hours of battery life. Mount it in the cockpit, turn it on, and fly.
State estimation
GPS and inertial sensors are fused in real time to estimate aircraft position, velocity, attitude, and sensor biases.

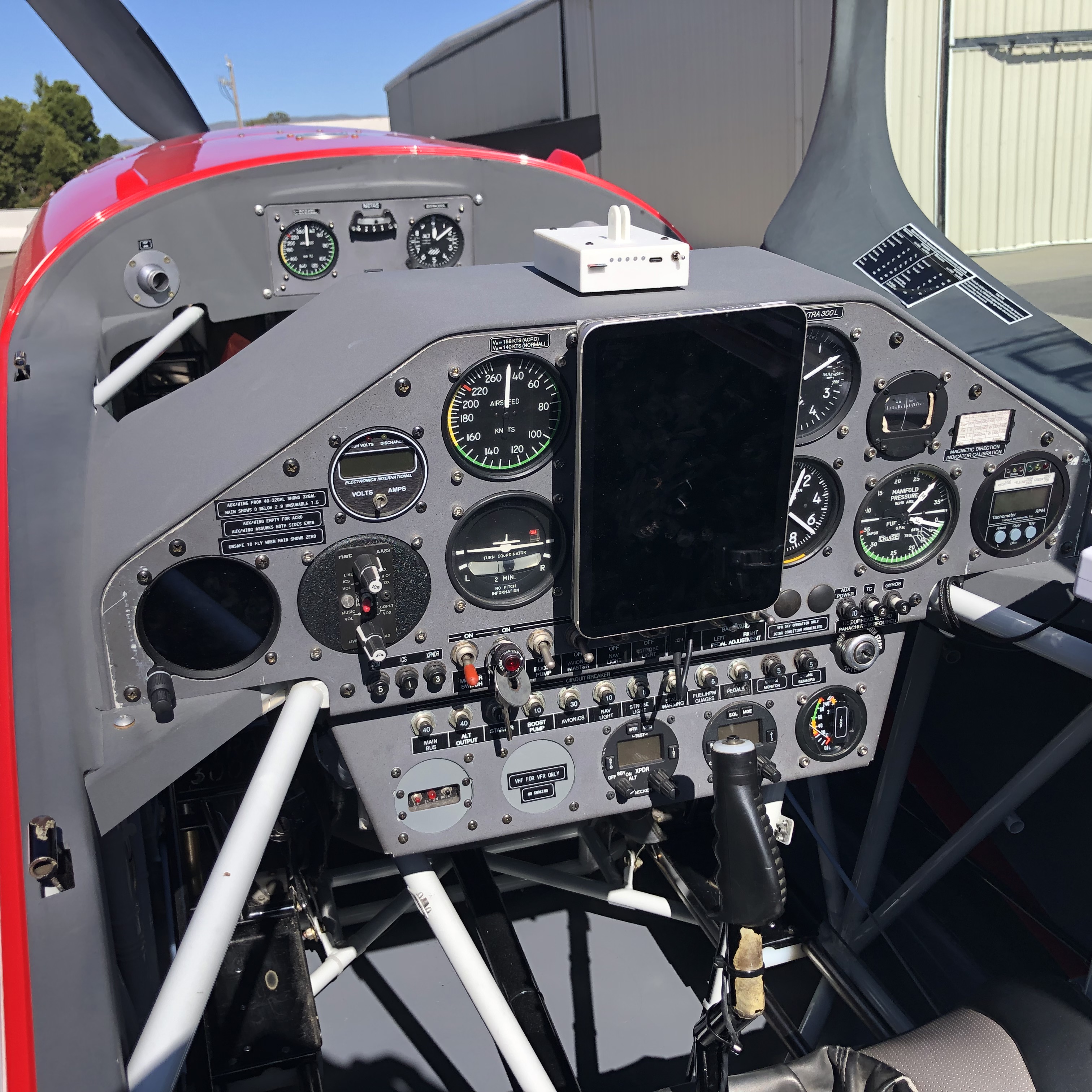

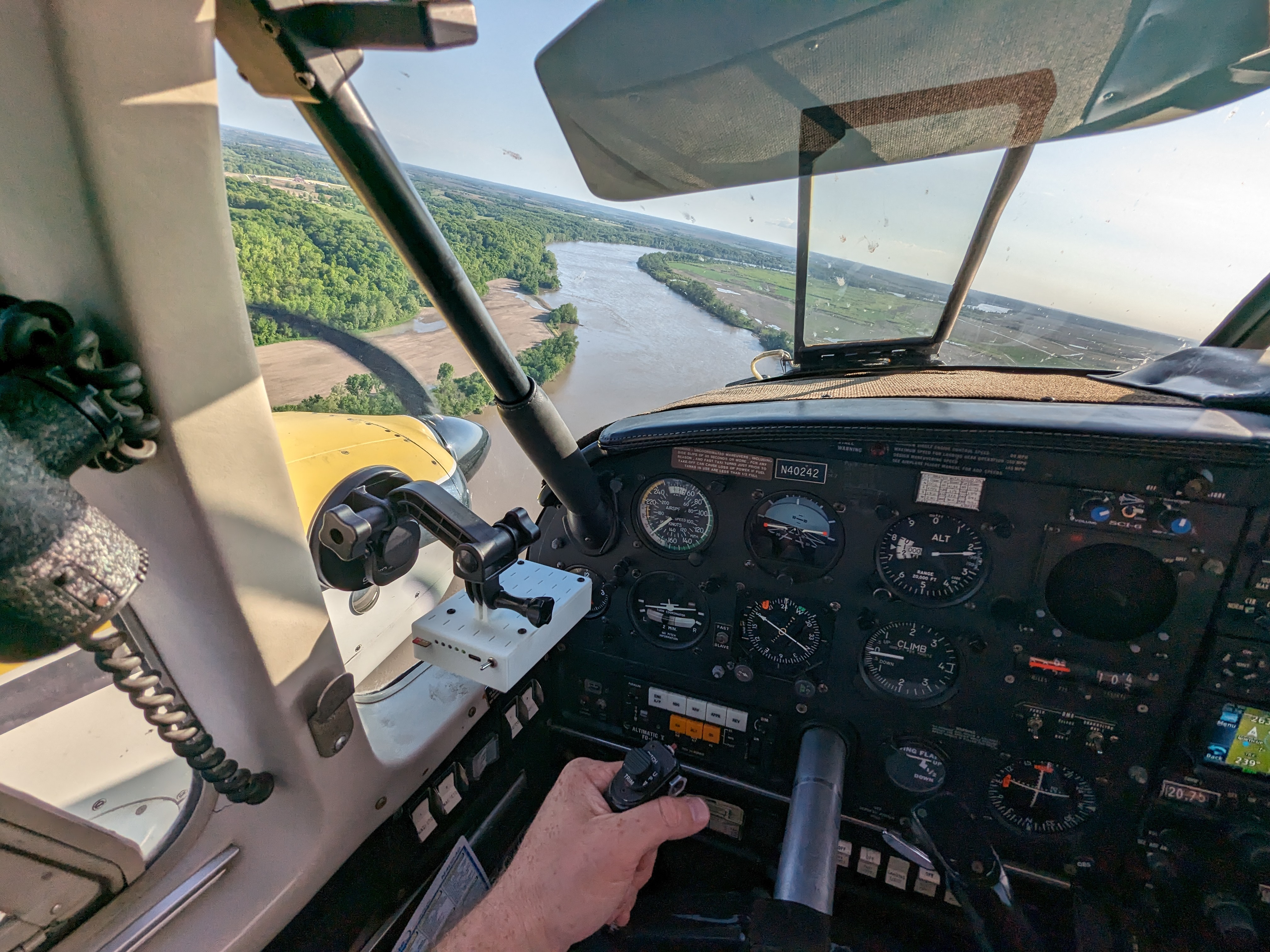

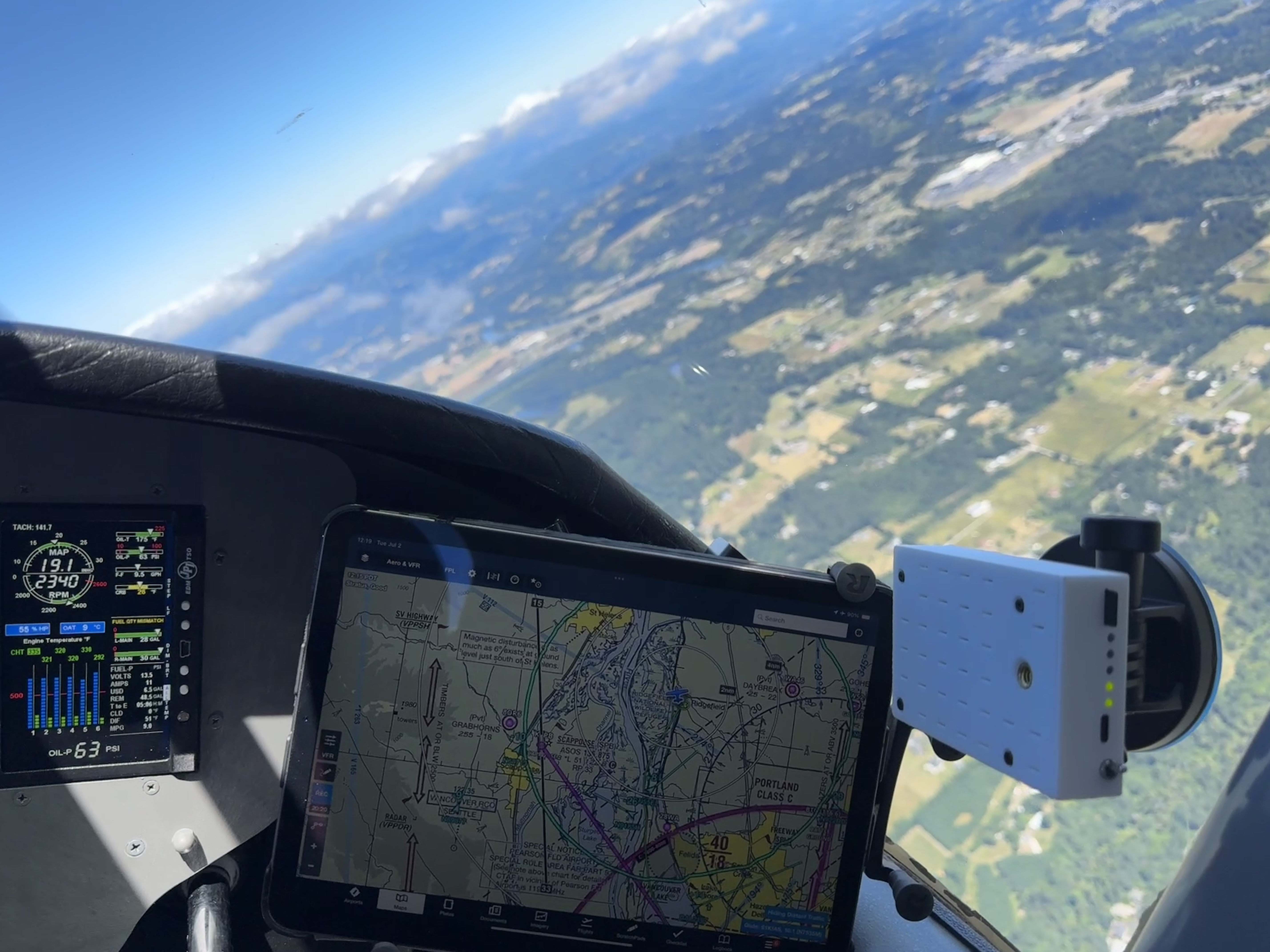

Customer installations shown with previous-generation OnFlight Hub.
Flight analysis tools
Review aerobatic sequences, debrief training flights, or examine your flight performance with ACROWRX, FlySto, and CloudAhoy.
AEROBATICS
Learn about ACROWRX →ACROWRX
Analyze aerobatic maneuvers and sequences using high-rate OnFlight data.
FLIGHT ANALYSIS
Visit FlySto →FlySto
Visualize and analyze recorded flights for general aviation, training, and performance review.
TRAINING + DEBRIEF
Visit CloudAhoy →CloudAhoy
Debrief maneuvers, approaches, procedures, and overall flight performance using recorded OnFlight data.
Convert OnFlight recordings to CSV or MATLAB files for your own analysis.
OnFlight Hub specifications
Portable instrumentation designed to move easily between aircraft without a permanent installation.
Sample rate50 Hz
WeightLess than 5 oz
Battery life8+ hours
Recharge timeApproximately 2.5 hours
NavigationGPS-aided inertial navigation
SensorsGNSS, IMU, magnetometer, static pressure
ConnectivityWi-Fi + Bluetooth
Real-time outputGDL-90 + UDP
Data exportCSV + MATLAB
ManufacturingDesigned and assembled in the USA
Wireless connectivity
Stream attitude and position over Wi-Fi to compatible flight apps, including ForeFlight and Garmin Pilot, using GDL-90. Bluetooth connects to compatible heart-rate monitors or a Skeeter Enterprises Stadia for above-ground-level (AGL) altitude data. Our custom UDP format provides higher-rate output for your own applications and options to stream additional data to OnFlight Hub. See the Developer’s Manual for details.
FROM THE COCKPIT
“I just downloaded it this afternoon, and it is the coolest f***ing thing to have this data and this display format!”
OnFlight Hub customer after flying into Chukar Flats in a Cessna 180 and reviewing the flight in CloudAhoy
ONFLIGHT HUB
Start recording your flights
$599
Loading purchase options…
