Review maneuver execution
Compare attitude, rotation rate, and load factor through a roll or pull-up to examine timing and consistency.
ONFLIGHT HUB+
Built for aerobatic analysis
Record dynamic maneuvers at 100 Hz with multi-frequency, multi-constellation GNSS and four integrated analog inputs.
Examine aircraft motion and control inputs, with precise GPS timing for formation flight analysis.
100 HzHigh-rate flight data
Multi-bandMulti-constellation GNSS
GPS timePrecisely synchronized data
4 analogSynchronized inputs
Detailed measurements through the maneuver
Review how you entered a maneuver, how the aircraft responded, and where the next flight could be more consistent.
Follow the flight path
Examine the shape of a loop or the trajectory through a sequence. Multi-frequency GNSS supports positioning as aircraft attitude changes; antenna placement still matters.
Connect inputs to aircraft response
Connect position sensors or other instrumentation to the analog inputs, then compare control movements with the aircraft’s recorded response.
Choose your antenna
Keep everything in one unit, or mount the antenna separately. Choose the setup that fits your cockpit and installation.
Integrated antenna
Keep everything in one unit with a helical antenna mounted on top of the case. The helical antenna supports satellite reception through unusual aircraft attitudes, making this a compact option for aerobatic flying.
What’s included
- OnFlight Hub+ with a top-mounted helical antenna
Tripod mount adapter sold separately.

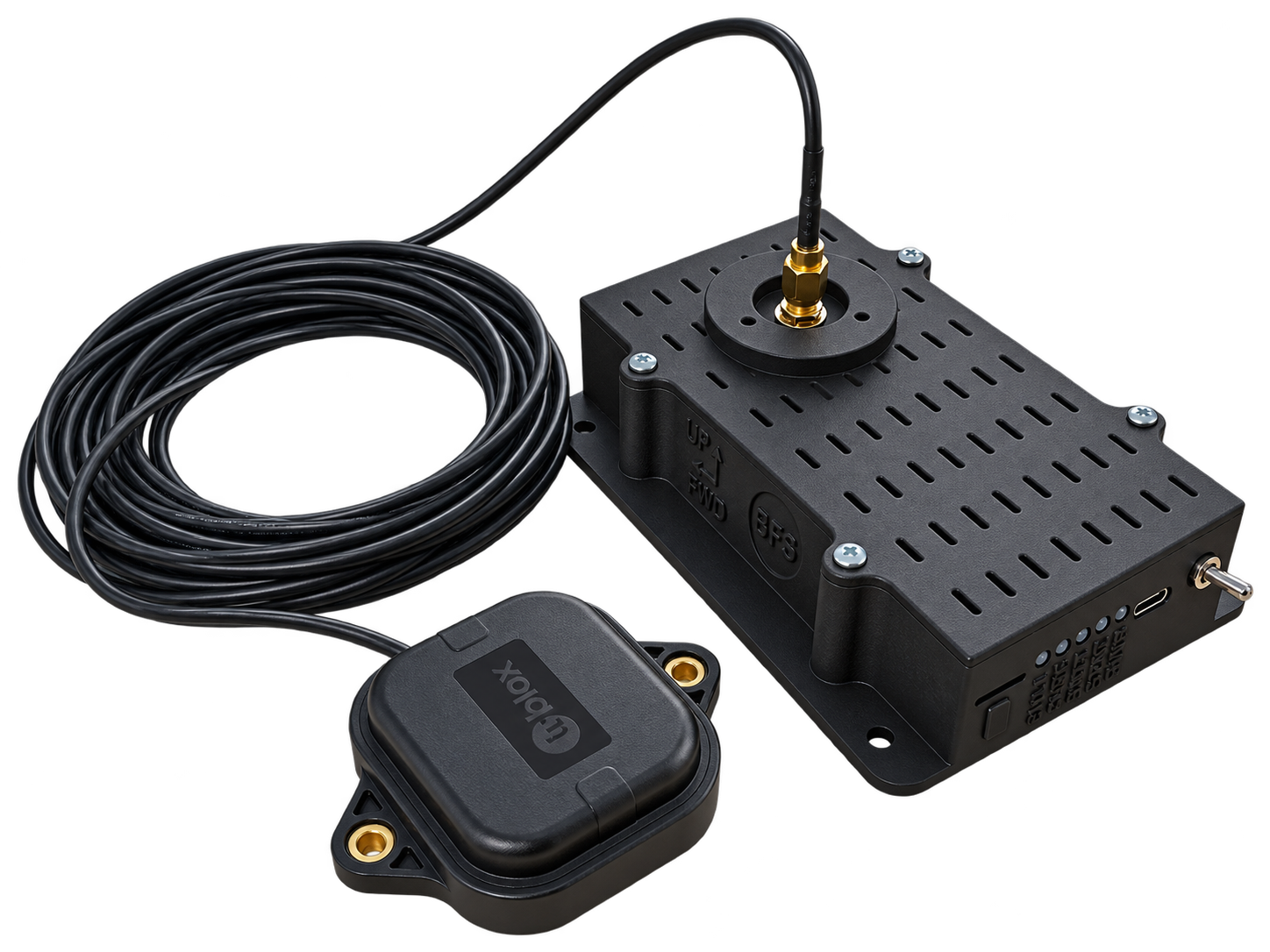

External antenna
Mount OnFlight Hub+ where it fits best and place the antenna on the glareshield for a clear view of the sky. A 5m cable gives you the flexibility to keep the logger and antenna in separate locations.
What’s included
- OnFlight Hub+
- External antenna with a 5m cable
Tripod mount adapter sold separately.
Antenna placement: The aircraft can block portions of the sky from either antenna, particularly during inverted flight. Position the antenna with as clear a view of the sky as your installation allows.
ACCESSORY

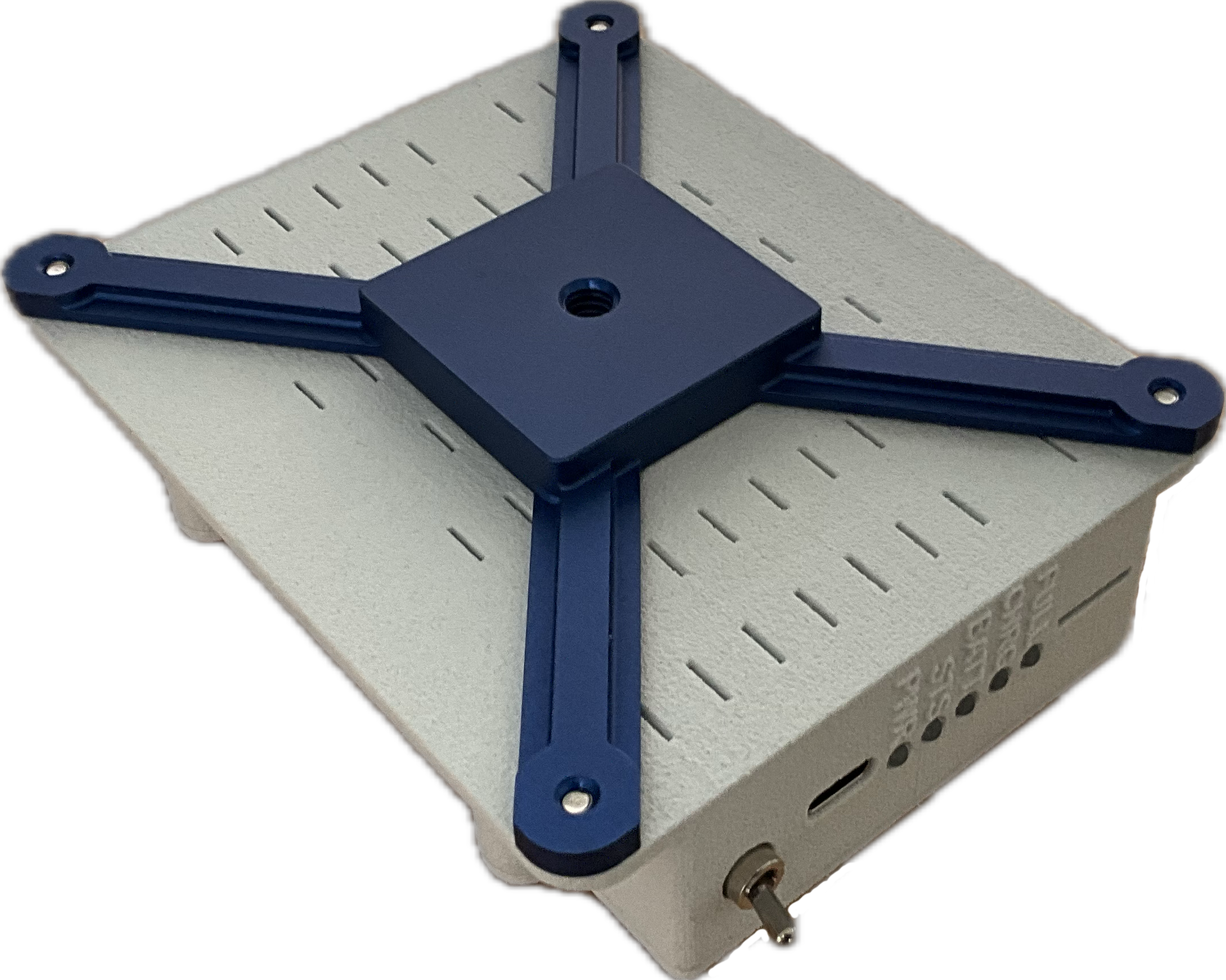

Tripod mount adapter
CNC-machined aluminum adapter connects either OnFlight Hub+ variant to a standard 1/4-20 tripod mount. Sold separately.
$49
Loading purchase options…
PROTOTYPE DEVELOPMENT
Blue Angels and Thunderbirds

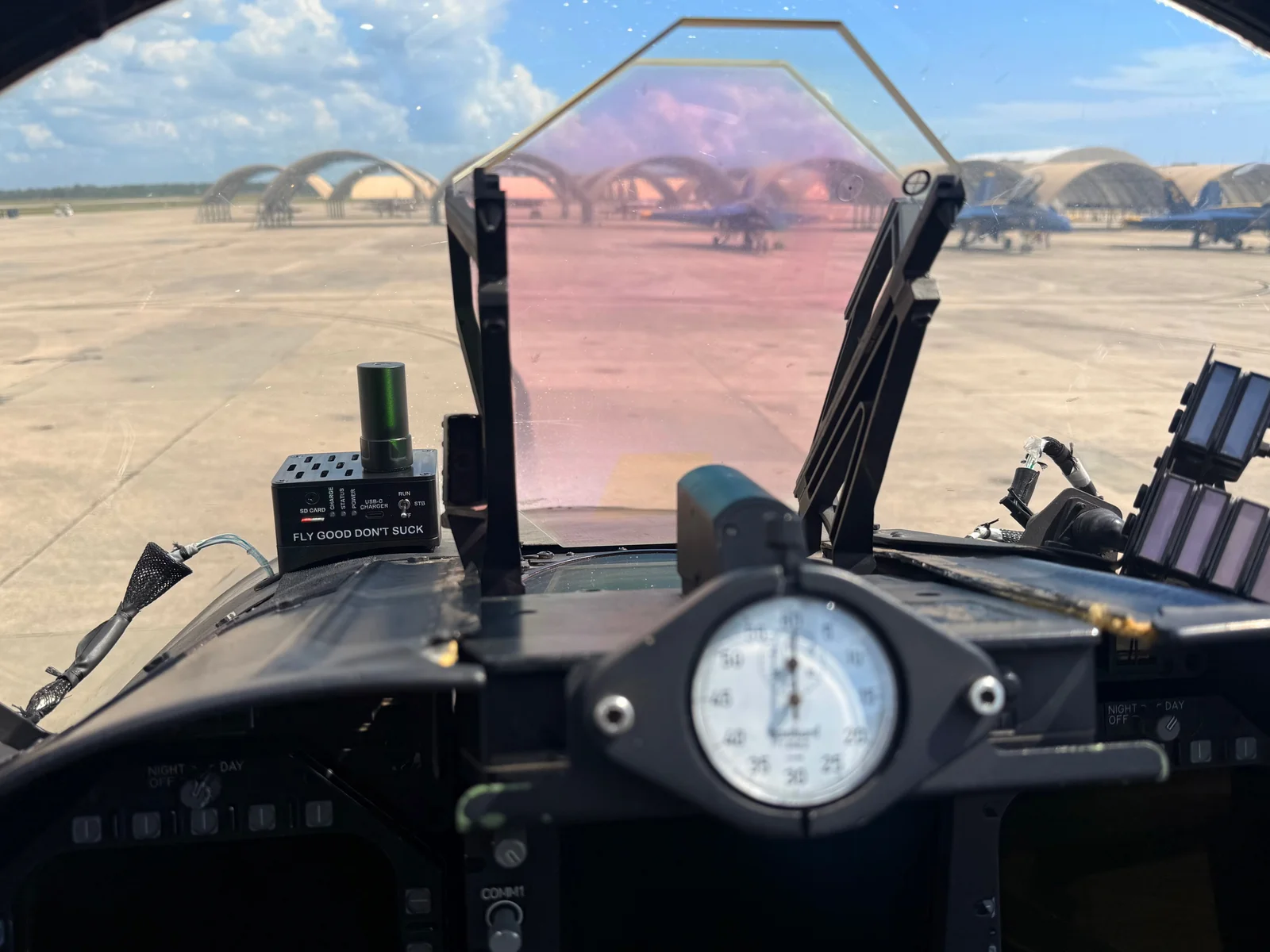

The technology behind OnFlight Hub+ was developed through prototype systems delivered to the U.S. Navy Blue Angels and U.S. Air Force Thunderbirds. Both teams use those systems with ACROWRX for training and flight analysis.
OnFlight Hub+ is the production system developed from that work.
Flight analysis tools
Review maneuvers and sequences in ACROWRX, or use FlySto and CloudAhoy for general flight analysis and training debriefs.
AEROBATICS
Learn about ACROWRX →ACROWRX
Analyze aerobatic maneuvers and sequences using high-rate Hub+ recordings, including synchronized flights from multiple aircraft.
FLIGHT ANALYSIS
Visit FlySto →FlySto
Visualize and analyze recorded flights for general aviation, training, and performance review.
TRAINING + DEBRIEF
Visit CloudAhoy →CloudAhoy
Debrief maneuvers, procedures, and overall flight performance using recorded OnFlight data.
Formation flight analysis
GPS timing lets you align recordings from multiple Hub+ units in ACROWRX and examine relative aircraft motion on a common timeline. Each aircraft records independently; no inter-aircraft data link is required.
Convert OnFlight recordings to CSV or MATLAB files for your own analysis.
OnFlight Hub+ specifications
100 Hz recording with synchronized navigation and analog inputs.
Sample rate100 Hz
WeightLess 8 oz (integrated antenna) / 13 oz (external antenna)
Battery life6+ hours
Recharge timeApproximately 2.5 hours
NavigationGNSS-aided inertial navigation
SensorsGNSS, IMU, magnetometer, static pressure
GNSSMulti-frequency, multi-constellation
GNSS antennaIntegrated or external
TimebaseGPS synchronized
Analog inputs4 channels
ConnectivityWi-Fi + Bluetooth
Real-time outputGDL-90 + UDP
Data exportACROWRX, CSV + MATLAB workflows
ManufacturingDesigned and assembled in the USA
Wireless connectivity
Stream attitude and position over Wi-Fi to compatible flight apps, including ForeFlight and Garmin Pilot, using GDL-90. Bluetooth connects to compatible heart-rate monitors or a Skeeter Enterprises Stadia for above-ground-level (AGL) altitude data. Our custom UDP format provides higher-rate output for your own applications and options to stream additional data to OnFlight Hub+. See the Developer’s Manual for details.
